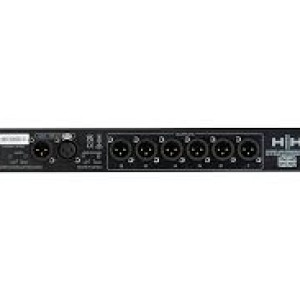

SP26 Technical Data Sheet
The SP26 is a professional-grade audio signal processor designed for precision and flexibility in audio applications.
Audio Input/Output
- Model: SP26
- Input: Two balanced inputs
- Output: Six balanced outputs
- Input Impedance: >10kΩ
- Output Impedance: <600Ω
- Input Gain: From +12dB to -50dB (0.25dB increments)
- Output Gain: From +12dB to -50dB (0.25dB increments)
Performance Parameters
- Frequency Response: 20Hz - 20kHz (-0.3dB)
- Total Harmonic Distortion (THD+N): <0.05%
- Dynamic Range: >98dB
- Max Delay: 5ms
Filtering and Crossover
- Converts Frequency: 20Hz - 20kHz (1Hz increments)
- Center Frequency: 20Hz - 20kHz (1/36 octave or 19,980 positions)
- High Pass & Low Pass Filter:
- Types: Bessel, Butterworth (6/12/18/24dB per octave), Linkwitz-Riley (24dB per octave)
- Q Value: Adjustable from 0.2 to 0.25 (0.1 increments)
- Bands: 10 bands with 1 filter per output channel
Limiter
- Threshold: +9dBu to -50dBu
- Release Time: 1-100
Power and Construction
- Power Supply: AC115V/230V, 50/60Hz ±10%
- Power Consumption: <10W
- Weight: 3kg
- Dimensions:
- Product Size: 482x125x44.5 mm (1U rackmount)
- Outer Packing Size: 525x195x110 mm
User Interface and Presets
- LCD Display: 2*16 character type
- Input Level Indicators: 2*7 points (-30dB to clip)
- Output Level Indicators: 6*7 points (-30dB to clip)
- Preset Memory:
- 100 computer presets
- 50 device presets
- Languages: English, German, Spanish, French, Dutch
Connectivity
- Input: 3-pin XLR female socket
- Output: 3-pin XLR male socket
- USB Connector: For software integration and updates
- Power Socket: 3-pin IEC socket
Additional Features
- Sampling Rate: 24-bit
- Phase Adjustment: 180° phase shift
- Startup Time: Fast boot-up for immediate operation
- Security: System password protection prevents unauthorized use.
The SP26 is engineered for optimal performance in live sound, studio, or complex audio environments, providing unmatched control and reliability.
SP26 PC Software Connection and Driver Installation Guide
Follow these steps to connect the SP26 to your computer and install the required drivers:
Step-by-Step Instructions
-
Connect SP26 to the Computer
- After setting up the PC software, connect the SP26 to your computer via the provided cable.
- If the computer does not automatically recognize the device:
- Open Device Manager by right-clicking on This PC or Computer.
- Select Scan for hardware changes to detect the SP26.
-
Identify Device in Device Manager
- Look for an exclamation mark (!) or question mark (?) next to an unidentified device, as shown in the example diagram (Pic 2).
- Right-click on the marked device and select Update Driver.
-
Launch Hardware Update Wizard
- If prompted, choose one of the following options:
- Install the software automatically: If this fails, proceed to the next step.
- Install from a list or specific location: Select this option and click Next to continue.
-
Specify Driver Path
-
Complete Driver Installation
- Once the installation is complete, the SP26 will appear correctly in the Device Manager, identified without any error symbols.
- Your SP26 is now ready to connect and operate with the PC software.
Tips for Success
- Ensure you have administrative privileges on your computer to install drivers.
- Restart your computer if the device is still not recognized after following these steps.
- Refer to the user manual for troubleshooting specific driver issues or compatibility concerns.
