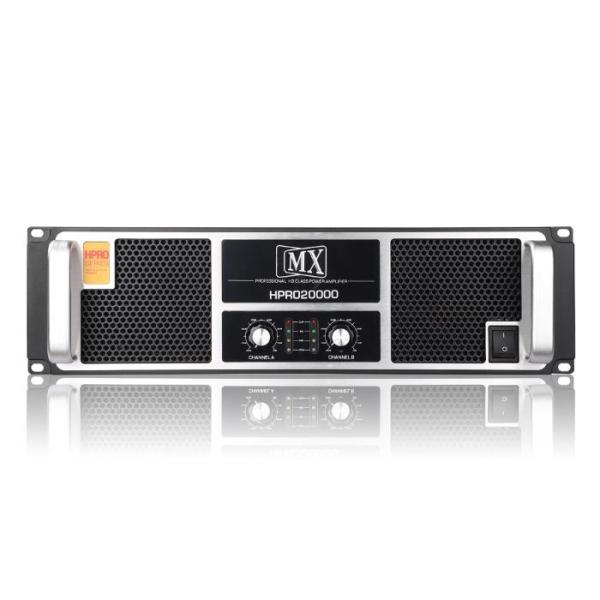

The MX Professional High Gain and High Efficiency Power Amplifier (6600 Watts per Channel at 2 Ohms, with Flight Case) is a powerhouse designed for large-scale professional audio applications. With exceptional power, reliability, and advanced features, it is ideal for demanding environments such as stadiums, large events, concerts, and high-end installations. Below is a detailed overview:
Key Features:
-
Unmatched Power Output:
- 6600 watts per channel at 2 ohms.
- 4200 watts per channel at 4 ohms.
- 2200 watts per channel at 8 ohms.
- 8400 watts in 4-ohm bridge mode.
- 4400 watts in 8-ohm bridge mode.
-
High-Efficiency Class H Design:
- Class H circuitry provides maximum power efficiency and minimal heat generation, making it suitable for continuous high-power operation.
-
Selectable Input Sensitivity:
- Options for 0.775V, 1V, and 1.4V, ensuring compatibility with a variety of audio sources.
-
Exceptional Signal-to-Noise Ratio:
- Greater than 110 dB (A-weighted) for clean, distortion-free audio performance.
-
Wide Frequency Response:
- Spanning 20Hz to 20kHz (+0/-0.5 dB), ensuring detailed and accurate sound reproduction across the entire audible range.
-
Robust Build with Flight Case:
- Comes with a flight case for added protection during transport, making it ideal for touring and mobile setups.
-
Advanced Protection Circuitry:
- Guards against short circuits, open circuits, RF interference, and ultrasonic interference.
- Includes thermal protection to prevent overheating during prolonged use.
-
Efficient Cooling System:
- Variable-speed fans keep the amplifier cool, ensuring consistent performance and longevity.
-
Subwoofer Optimization:
- Selectable low-pass filter (up to 200Hz) for subwoofer output, enhancing low-frequency performance.
-

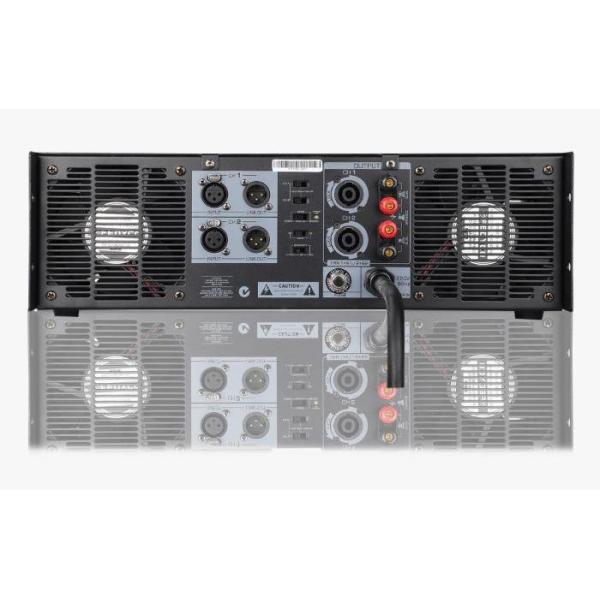

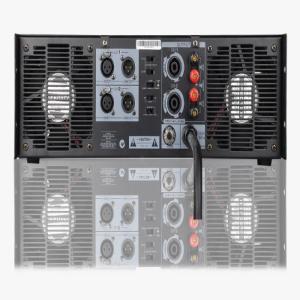

Professional-Grade Connections:
- XLR inputs for secure and reliable connections.
-
User-Friendly Controls:
- Center-dented gain controls for precise adjustment.
- Input peak limiter for preventing signal overload and distortion.
Specifications
- Output Power:
- 2 Ohms (per channel): 6600W
- 4 Ohms (per channel): 4200W
- 8 Ohms (per channel): 2200W
- Bridge Mode (4 Ohms): 8400W
- Bridge Mode (8 Ohms): 4400W
- Input Sensitivity: 0.775V, 1V, 1.4V (selectable)
- Signal-to-Noise Ratio (S/N Ratio): >110 dB (A-weighted)
- Frequency Response: 20Hz – 20kHz (+0/-0.5 dB)
- Output Class: Class H
- Cooling: Variable-speed fans
Applications
- Concerts and Stadiums: Handles massive power requirements for large-scale events.
- High-End Installations: Provides reliable performance for professional audio systems in permanent venues.
- Touring and Mobile Setups: Flight case protection makes it ideal for on-the-go use.
- Subwoofer Systems: Dedicated low-pass filter enhances bass performance for impactful sound.
