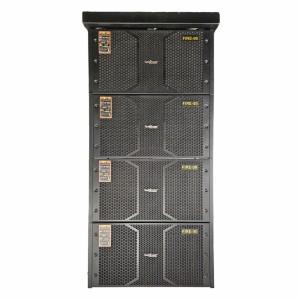

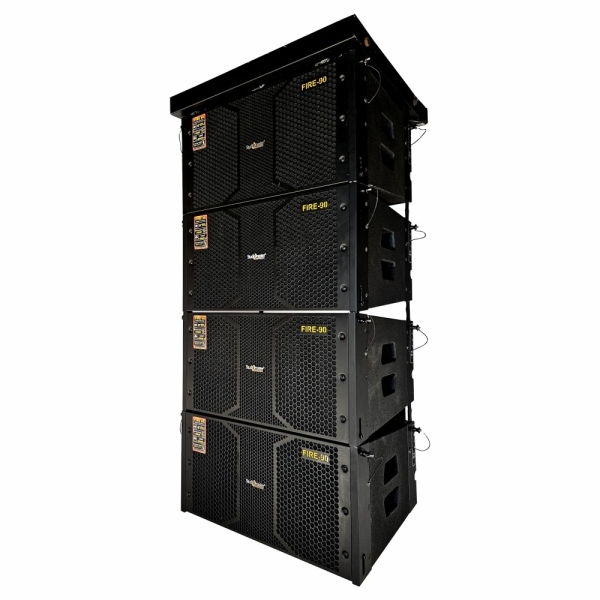

The Fire 90 is a high-performance single 12-inch passive line array system designed to deliver precision sound, exceptional clarity, and uniform coverage. This versatile system is ideal for live sound reinforcement, touring, DJ performances, and fixed installations.
Key Features
-
Drivers:
- Single 12-inch LF mid-bass driver with a 4-inch voice coil for articulate midrange clarity.
- 2-inch exit HF compression driver with a 2.84-inch voice coil for pristine high-frequency performance.
-
Acoustic Design:
- Constant curvature waveguide for coherent dispersion across the array.
- State-of-the-art crossover enhances frequency response and transitions for smooth sound reproduction.
- Nominal coverage pattern: 120° horizontal x 9° vertical for consistent sound distribution.
-
Array Configurations:
- Variable splay angles (0°, 3°, 6°, and 9°) enable flexible system configurations.
- Integrated locking system for secure, quick setup.
-
Build Quality:
- Durable wooden cabinet with acoustic tuning for superior performance.
- Anti-scratch textured paint finish and stylish protective grille ensure durability and aesthetic appeal.
-
Mounting and Rigging:
- Dual pole mounts provide both straight and angled (up-firing) throw options.
- Optional robust fly bar kit for fast and secure flying or rigging installations.
-
Performance:
- Power Output: 600W RMS / 1200W Peak.
- Exceptional long-throw capability and high-fidelity sound reproduction for professional applications.
Applications
The Fire 90 excels in a variety of settings:
- Live Sound: Bands, concerts, and outdoor events.
- Touring: Lightweight and portable for frequent setup and breakdown.
- Installations: Ideal for auditoriums, houses of worship, and clubs.
- DJ Performances: Powerful bass and crystal-clear highs for dance floors.
Combining Studiomaster Professional's custom engineering and years of expertise, the Fire 90 ensures stunning sound quality and reliable performance, making it an excellent choice for demanding audio applications.
Technical Specifications for Studiomaster Professional Fire 90 line array
Model:
Product Type:
Performance Specifications
- Power Output (RMS / Peak):
- Frequency Response:
- Maximum SPL:
- Sensitivity (1W @ 1m):
Drivers
- LF Driver:
- 1 x 12" Low-Frequency Driver with 4" Voice Coil
- HF Driver:
- 1 x 2" Exit Compression Driver with 3" Voice Coil
System Design
- Nominal Impedance:
- Crossover Frequency:
- Horizontal Coverage Angle:
- Vertical Coverage Angle:
Connectivity
Array Configurations
- Variable Splay Angles:
- 0°, 3°, 6°, and 9° for flexible setup options
Physical Specifications
- Dimensions (W x D x H):
- Net Weight:
- Fire 90: 36 kg
- Fly Bar: 17 kg
Key Features
- Custom Engineered Transducers: For superior midrange clarity and high-frequency detail.
- Constant Curvature Waveguide: Ensures uniform coverage and array coherence.
- Robust Construction: Acoustically tuned wooden cabinet with anti-scratch textured paint.
- Flexible Mounting: Dual pole mounts and optional fly bar for versatile applications.
- Ideal for Professional Use: Designed for live sound, touring, DJ setups, and installations.
The Fire 90 combines precision engineering with superior performance to deliver reliable, high-fidelity sound across a wide range of professional audio environments.
