PA Speaker L15MB 900

₹11,965.00
Ahuja L15 MB900 Speaker:
Categories:
Brand:

Product Details

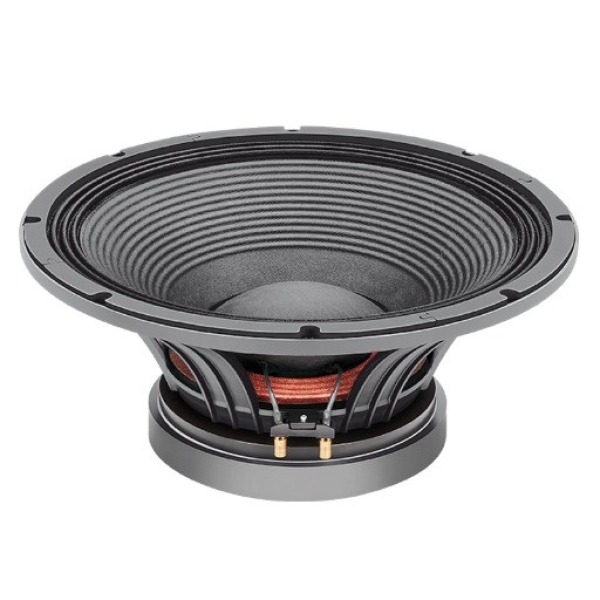

The Ahuja L15 MB900 is a high-performance 15-inch low-frequency loudspeaker designed for exceptional bass and mid-bass response. With advanced engineering and premium materials, it is ideal for demanding professional audio applications requiring high power handling and reliability.

Key Features:

  • Power Handling: 900 Watts RMS for robust audio output.
  • Design: Aluminium die-cast frame with gold-plated push-type heavy-duty terminals for durability and secure connections.
  • Voice Coil:
    • Size: 4 inches (10.16 cm) edge-wound aluminium wire for higher SPL.
    • Former Material: Glass fibre, resistant to high temperatures.
  • Performance: Excellent bass and mid-bass response with high sensitivity.

Technical Specifications:

General Specifications:

  • Brand: Ahuja
  • Model: L15 MB900
  • Color: Black
  • Nominal Diameter: 380 mm (15 inches)
  • Nominal Impedance: 8 Ω
  • Sensitivity (1W/1m): 97 dB
  • Magnet Weight: 3.56 kg
  • Weight: 11.60 kg

Performance Parameters:

  • Resonant Frequency (Fs): 42 Hz
  • Power Efficiency (ηo): 3.36%
  • BL Product (BL): 21.8 TM
  • Moving Mass (Mms): 135 gm
  • Overhang (Xmax): 9.0 mm

Thiele-Small Parameters:

  • Electromagnetic Q (Qes): 0.37
  • Mechanical Q (Qms): 12.8
  • Total Q (Qts): 0.36
  • Compliance Equivalent Volume (VAS): 152 litres
  • Surface Area of Cone (Sd): 897 cm²
  • Coil Inductance (Le): 1.23 mH

Physical Dimensions:

  • Overall Diameter: 397 mm
  • Depth: 180 mm
  • Baffle Hole Diameter: 359 mm
  • Bolt Mount Diameter (PCD): 379 mm (8 bolts)

Applications:

  • Ideal for professional sound reinforcement systems.
  • Designed for powerful bass and mid-bass applications in PA systems.

The Ahuja L15 MB900 is a robust and reliable choice for professional audio setups that demand superior performance and durability
