Key Features:
- Bi-Amplifier Technology: Separate amplifiers for the woofer and high-frequency driver (HF), providing optimized sound quality for both low and high frequencies.
- Ideal for Professional Audio Applications: Suitable for various environments like music and vocal performances, touring PA systems, mini-theatres, pubs, bars, religious gatherings, stage monitors, and more.

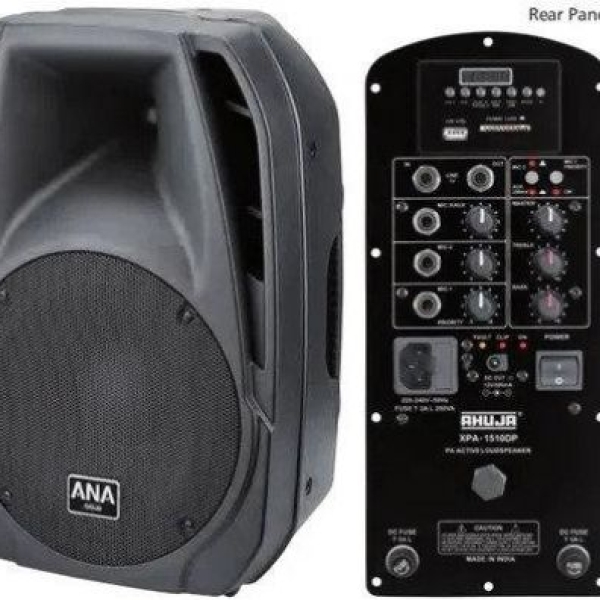

- Balanced Mic/Line Input: A balanced microphone or line input that can be selected via a push switch.
- Flexible Line Input: Can connect a balanced mono signal via a jack or an unbalanced stereo signal through dual RCA.
- Switchable Balanced Output: Options include a loop-through output (Input-1) or a mix output from Inputs 1 and 2, allowing easy linking of additional speakers or recording to external devices.
- 2-Way Speaker System: Features a 15-inch low-frequency (LF) woofer and a dynamic horn with a 1.75-inch voice coil for clear sound reproduction.
- Tone Controls: Bass and treble adjustments (±5dB at 100Hz and 10kHz, respectively) for sound customization.
Specifications:
- Power Output:
- Low-Frequency (LF): 350W RMS (1% THD, Class H)
- High-Frequency (HF): 50W RMS (1% THD, Class AB)
- Output Regulation: ≤0.5dB, no load to full load at 1kHz
- Frequency Response: 50Hz to 20kHz ±3dB
- Crossover Frequency: 2.5kHz with a 24dB per octave filter slope
- Signal-to-Noise Ratio: 60dB
- Dimensions: 450mm (W) x 690mm (H) x 360mm (D)
- Weight: [Specific weight not mentioned]
- Power Supply: AC 220-240V, 50/60Hz
- AC Power Consumption: 500VA
- Protections:
- AC: 1x5A Fuse (T 5A L)
- DC: 2x8A Fuses (T 8A L)
Applications:
- Professional Music & Vocal Performances
- Touring PA Systems
- Mini-Theatres and Pubs/Bars
- Religious Gatherings
- Stage Monitors
This speaker is designed to provide reliable sound performance across various events, offering flexibility with inputs, outputs, and customizability for different acoustics.
