IW SERIES MILLER & KREISEL IW150T(PAIR)

Uncompromising Surround Sound, Seamlessly Integrated

The IW150T Tripole® In-Wall Speaker brings the renowned performance of the S150T Tripole® surround speaker to an unobtrusive in-wall design. Engineered for modern surround formats such as Dolby Atmos and DTS:X, the IW150T delivers the same acoustic excellence as the M&K 150 Series, ensuring an immersive, cinematic experience without visible speakers or cables.

Key Features

Superior Surround Sound

• Tripole® Design: Combines a direct-radiating front channel with dual side-firing drivers for a wide, immersive soundstage.
• Advanced Drivers:
  • 1.1” Coated Silk Dome Tweeter: Low compression and high clarity for crisp highs.
  • 5.25” Coated Glass Fiber Woofer: Provides detailed and impactful bass and midrange.
  • 2 x 2.35” Side Drivers: Polymer-coated textured paper for smooth, diffuse surround sound.

Optimized for Modern Formats

• Perfect for Dolby Atmos, DTS:X, and other advanced surround sound setups.
• Allows for expanded surround channels with clean, invisible installation.

Flexible Installation

• In-wall design eliminates clutter and integrates seamlessly with your room.

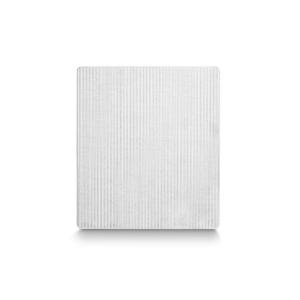

• Paintable White Metal Grille: Matches any décor for a discreet look.

Professional-Grade Build

• Sealed Enclosure: Ensures consistent performance and minimizes resonance.
• Gold-Plated, Spring-Loaded Banana Terminals: Provides secure and reliable connections.

Specifications

Audio Performance

• System Impedance: 4 Ohms.
• Frequency Response: 60 Hz – 20 kHz (±3 dB).
• Frequency Roll Off: 55 Hz (-6 dB).
• Crossover Frequency: 1.5 kHz.
• Sensitivity: 85 dB (2.83V/1m, On-Axis 200-10 kHz).
• Power Handling:
  • 100W Long-Term (IEC-268-5, cycled input 80-20 kHz).
  • 50W Rated (IEC-268-5, constant input 80-20 kHz).
• Recommended Amplifier Power: 25-200W.

Drivers

• Front Tweeter: 1.1” coated silk dome.
• Front Woofer: 5.25” coated glass fiber.
• Side Drivers: 2 x 2.35” polymer-coated textured paper.

Dimensions

• Overall Dimensions (HxWxD): 354 mm x 311 mm x 95 mm.
• Wall Cutout (HxW): 331 mm x 288 mm.
• Weight: 6.8 kg (14.99 lbs).

Finish

• Fascia: Powder-coated black.
• Grille: White metal, paintable to blend with any interior.

The IW150T Tripole® In-Wall Speaker is the ultimate solution for achieving premium surround sound in a minimalist, low-profile design. Perfect for modern home theaters, it combines M&K’s professional-grade audio quality with a sleek and discreet aesthetic.

Elevate your surround sound system with the IW150T today.
