Product Details

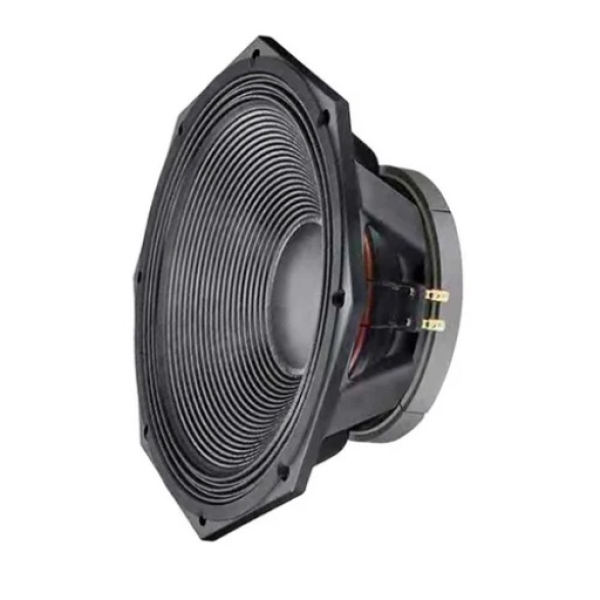

The Ahuja L18-SW1300 series is a premium range of professional low-frequency speakers, designed to deliver exceptional bass performance in various subwoofer applications. These models are ideal for compact bass reflex and horn-loaded subwoofer enclosures, providing deep, powerful bass for professional audio setups.
| Specifications | L18-SW1300V | L18-SW1300X |
|---|---|---|
| Power Rating | 1300W RMS / 2600W Program | 1300W RMS / 2600W Program |
| Nominal Diameter | 457 mm (18 inches) | 457 mm (18 inches) |
| Nominal Impedance | 4Ω | 8Ω |
| Sensitivity (1W/1m) | 97 dB | 97 dB |
| Magnet Weight | 5.65 kg | 5.65 kg |
| Resonant Frequency (Fs) | 37 Hz | 35 Hz |
| DC Resistance (Re) | 3.6Ω | 5.6Ω |
| Electromagnetic Q (Qes) | 0.27 | 0.27 |
| Mechanical Q (Qms) | 4.33 | 12.9 |
| Total Q (Qts) | 0.25 | 0.26 |
| Compliance Volume (VAS) | 186 litres | 209 litres |
| Surface Area of Cone (Sd) | 1257 cm² | 1257 cm² |
| Reference Efficiency (ηo) | 3.5% | 2.95% |
| Voice Coil Diameter | 5.0 inches | 5.0 inches |
| Overhang (Xmax) | 8.0 mm | 8.0 mm |
| Moving Mass (Mms) | 212 gm | 229 gm |
| BL Product (BL) | 25.8 TM | 32.0 TM |
| Coil Inductance (Le) | 1.3 mH | 1.73 mH |
| Overall Dimensions | 495 × 450 mm | 495 × 450 mm |
| Depth | 202 mm | 202 mm |
| Baffle Hole Diameter | 422 mm | 422 mm |
| Bolt Mount Diameter (PCD) | 443 mm (8 bolts) | 443 mm (8 bolts) |
| Weight | 18.80 kg | 18.80 kg |
The Ahuja L18-SW1300 series combines power, durability, and precision engineering to meet the demands of professional audio applications. Whether you need the high-current capabilities of the L18-SW1300V or the versatility of the L18-SW1300X, these models deliver unmatched performance and reliability.
