Product Details

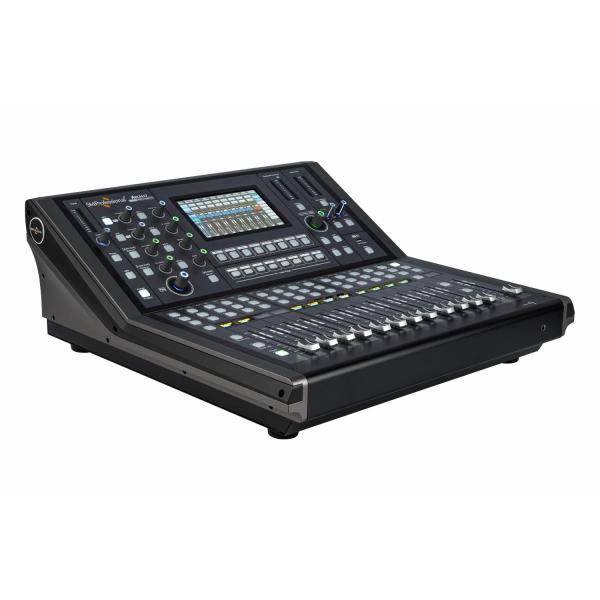

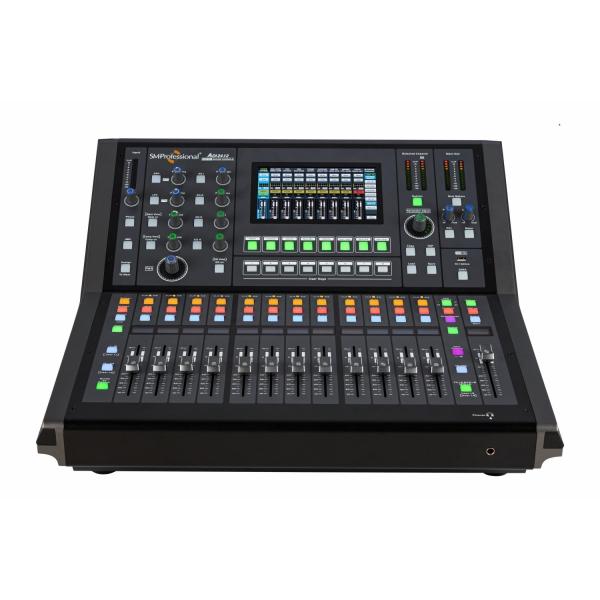

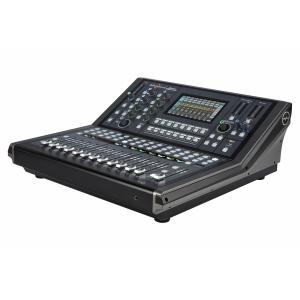

The Studiomaster Professional ADI 24.12 is a premium 24-channel digital mixing console engineered for live, touring, studio, and installation applications. Designed to deliver speed, precision, and flexibility, it features a 7” high-resolution LCD touchscreen, 13 motorised faders, 12 smart DCAs, and an extensive suite of DSP-powered EFX tools, offering an all-in-one integrated mixing solution.
Built on Studiomaster Professional’s legacy of high-quality audio innovation, the ADI 24.12 combines powerful processing, intuitive workflow, and robust connectivity to meet the demands of modern sound engineers.

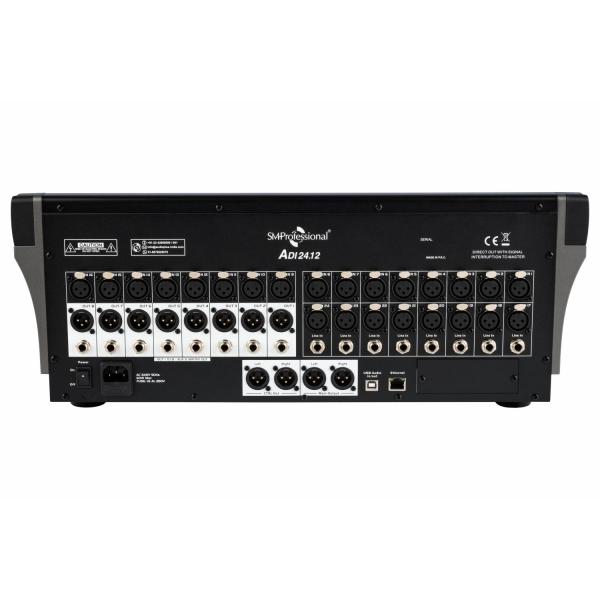

Inputs & Outputs:
24 XLR mic and 8 line analog inputs with digital gain control
12 flexible outputs: 8 assignable mix bus (XLR & 1/4” line), 2 main L/R (XLR), control room L/R (XLR)
Mixing & Control:
13 premium 100mm motorised faders for agile, accurate control
7” high-resolution colour LCD touchscreen for complete navigation
13 individual OLED channel displays
Processing Power:
Integrated 32-bit dual DSP EFX with EQ, noise gate, compressor/limiter, delay, and more
4-band full parametric EQ with multiple filters (inputs & outputs)
31-band graphic EQ (outputs)
High-resolution 24-bit / 48kHz sampling rate
Connectivity & Integration:
Full duplex USB audio interface for simultaneous recording and playback
Individually assignable +48V phantom power
Dante add-on option for advanced network AV integration
Advanced Functions:
Automix, RTA analyzer, feedback control, talkback, signal generator, matrix routing
Multiple colour LED metering and self-illuminated switches
User-definable presets with store/recall
Password protection for secure settings
Gain (Mic / Line): 50dB / 50dB
Input Sensitivity: Mic (0dBu / -50dBu), Line (-20dBu / +30dBu)
Input Impedance: Mic – 6.8KΩ, Line – 75KΩ
Output: +20dBu nominal, 120Ω impedance
Frequency Response: 22Hz–20kHz (0dBu ±2dBu)
THD: <0.03% at 0dBu, 1kHz
SNR: -90dBu
EQ: Mono Mic ±15dBu, Stereo Line ±15dBu (20Hz–20kHz)
EFX: 32-bit / 24-bit
Phantom Power: +48V
Dimensions (W x D x H): 532.2 × 537.5 × 220 mm
Net Weight: 13.25 kg
