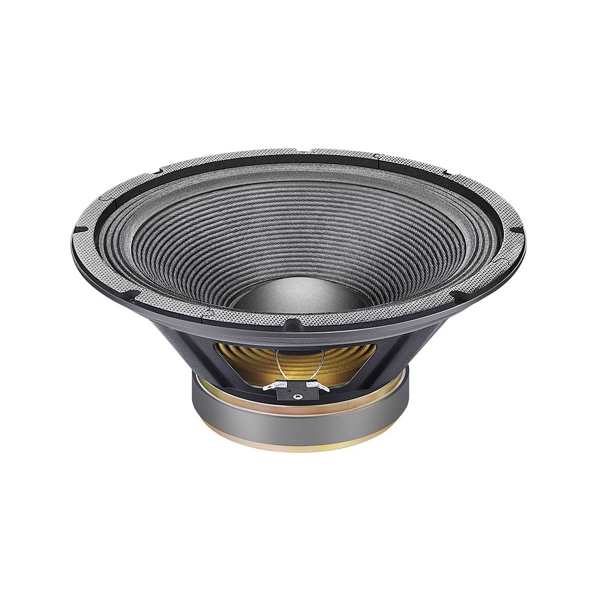

The Ahuja L12-MB200 12-Inch Speaker is a powerful medium-duty speaker designed for bass and midrange applications. It is highly suitable for use in compact 2-way speaker systems and monitoring setups. Here are its features and detailed specifications:
Key Features:
Power Rating: 200W RMS, delivering high performance for medium-power sound applications.
Nominal Diameter: 12 inches (305mm), optimized for low-frequency reproduction, ideal for bass and midrange.
Durability: Designed with a robust steel frame and plasticized cloth edge composite cone for durability and strength.
High-Temperature Resistance: Features a KAPTON former and 2.0-inch copper voice coil for withstanding high temperatures, ensuring reliability in demanding environments.
Versatility: Perfect for use in bass-midrange and monitoring applications, making it ideal for PA systems, studio monitors, and other audio setups requiring high performance.
Detailed Specifications:
Brand: Ahuja
Model: L12-MB200
Power Rating: 200W RMS
Nominal Diameter: 305mm (12”)
Nominal Impedance: 8Ω
Sensitivity: 97 dB (measured at 1W/1m)
Magnet Weight: 1.16 kg for strong magnetic performance and low distortion.
Resonant Frequency (Fs): 45 Hz, providing solid low-frequency response.
Voice Coil Diameter: 2.0 inches (5.08 cm), ensuring efficient power handling and heat dissipation.
Overhang (Xmax): 2.5 mm, contributing to greater excursion and better bass performance.
Moving Mass (Mms): 51.9 g
BL Product (BL): 13.42 TM, optimizing motor strength for efficient performance.
Coil Inductance (Le): 0.89 mH
Overall Diameter: 313 mm
Depth: 127 mm
Baffle Hole Diameter: 285 mm
Bolt Mount Diameter (PCD): 295 mm (8 bolts, easy mounting)
Weight: 4.16 kg
This Ahuja L12-MB200 speaker is an excellent choice for applications requiring robust performance, making it ideal for a wide range of PA systems, audio installations, and compact sound systems.
