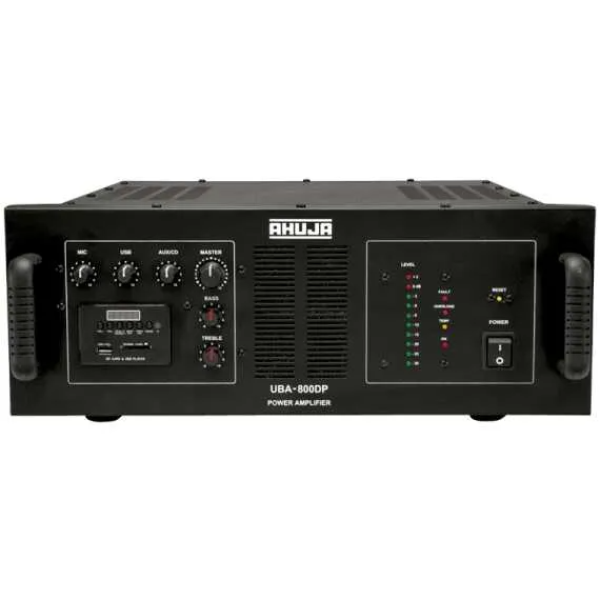

The Ahuja UBA 800DP is a high-powered amplifier designed to deliver robust and high-quality audio for DJ performances and public address (PA) applications. With a built-in digital player and versatile input options, it is suitable for professional setups requiring powerful amplification and modern playback capabilities.
Key Features
-
High-Power Output:
- 1150W RMS Max.
- 800W RMS at 10% THD, 770W RMS at 5% THD, and 725W RMS at 2% THD.
- Supports 2Ω, 4Ω, and 8Ω speaker outputs for various speaker configurations.
-
Built-In Digital Player:
- Features MP3 playback via USB, SD/MMC card reader, and Bluetooth, allowing seamless integration with modern digital devices.
- Comes with remote control for easy operation.
-
Input Versatility:
- 1 × Mic Input (1mV / 4.7kΩ) for direct microphone connection.
- 2 × Aux Inputs (100mV / 470kΩ and 250mV / 20kΩ) for connecting external audio sources like mixers or keyboards.
- 1 × CD Input (250mV / 20kΩ) for dedicated CD player integration.
- 1 × Line Input (1V / 20kΩ) for additional audio equipment.
-
Enhanced Sound Control:
- Bass (±8dB at 100Hz) and Treble (±8dB at 10kHz) controls allow precise tonal adjustments.
- Designed for accurate tonal reproduction suitable for professional DJ and PA applications.
-
Connectivity:
- Line Output (1V/1kΩ) for interconnecting with other power amplifiers.
-
Protection Features:
- Circuit Protector Device for safeguarding against overload and short circuits.
- Overvoltage Protection for AC mains supply, especially useful when operating with generators.
- Indicator LEDs for:
- Power
- Signal
- Temperature
- Overload
- Fault conditions.
-
Reliable Build Quality:
- Sturdy design with 2 × 25 Amp fuses in ±DC supply and an 8 Amp circuit breaker for AC mains.
- Temperature and overload protection ensures durability and reliability in demanding environments.
-
Wide Frequency Response:
- 50Hz–18,000Hz ±3dB, delivering a rich audio range suitable for various music and speech applications.
Technical Specifications
| Parameter |
Details |
| Power Output |
1150W Max, 800W RMS @ 10% THD |
| Input Channels |
Mic: 1mV/4.7kΩ, Aux: 100mV/470kΩ, CD: 250mV/20kΩ, Line: 1V/20kΩ |
| Frequency Response |
50Hz–18,000Hz ±3dB |
| Tone Controls |
Bass ±8dB @ 100Hz, Treble ±8dB @ 10kHz |
| Signal-to-Noise Ratio |
60dB |
| Speaker Outputs |
2Ω, 4Ω, 8Ω |
| Digital Player |
USB, SD, MMC, Bluetooth |
| Power Supply |
AC: 220–240V, 50/60Hz |
| Protections |
Overvoltage, Overload, Temperature |
| Power Consumption |
1500 VA |
| Dimensions |
482 × 186 × 530 mm |
| Weight |
32.0kg |
Applications
- DJ Performances: With high power output, precise tonal controls, and Bluetooth/USB playback, it is ideal for DJs.
- Public Address Systems: Excellent for venues, auditoriums, and large-scale events.
- Live Music Events: Handles multiple input types, making it perfect for bands or live music setups.
- Multi-Device Integration: Versatile input and output options allow seamless integration with mixers, microphones, CD players, and more.
The Ahuja UBA 800DP Power Amplifier combines high power, modern digital features, and robust protection mechanisms, making it a reliable choice for professional audio setups. Whether for a DJ gig, a live performance, or a PA system, this amplifier delivers exceptional performance and flexibility.
