PA Power Amplifier SPA 15000

₹57,575.00 ₹55,272.00

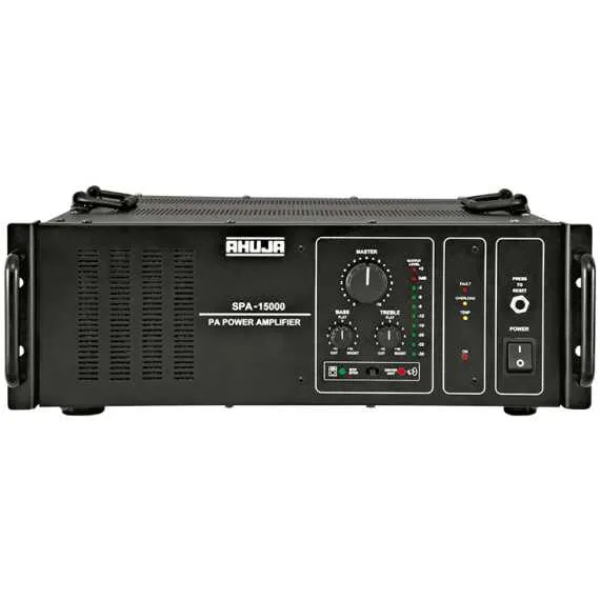

Ahuja SPA 15000 Power Amplifier is a high-capacity, single-channel PA booster amplifier
Categories:
Brand:

Product Details

The Ahuja SPA 15000 Power Amplifier is a high-capacity, single-channel PA booster amplifier designed for large installations requiring significant power output to drive multiple speakers. Its robust build and safety features make it ideal for professional audio setups in demanding environments. Below are the key details and specifications:

Key Features

  • High Power Output:

    • Provides up to 2000W max power, with RMS ratings of:
      • 1500W at 10% THD.
      • 1400W at 5% THD.
      • 1250W at 2% THD.

  • Flexible Input Options:

    • Line Input: 200mV/1V switchable, compatible with mixers or other amplifiers.
    • 100V input for linking with the output of another amplifier.

  • Comprehensive Speaker Compatibility:

    • Supports 2Ω, 4Ω, 70V, and 100V speaker outputs, accommodating various speaker configurations.

  • Safety and Reliability:

    • Resettable circuit breaker protects against overload and short circuits.
    • Selector switch for Box Speaker/Driver Unit ensures safe operation by disabling bass boost in Driver Unit mode.

  • Advanced Controls:

    • Tone Controls: Adjust bass (±8dB at 100Hz) and treble (±8dB at 10kHz) to tailor sound output.

Technical Specifications

  • Power Output:

    • 2000W max.
    • 1500W RMS at 10% THD.
    • 1400W RMS at 5% THD.
    • 1250W RMS at 2% THD.

  • Performance Parameters:

    • Output Regulation: ≤ 2 dB (no load to full load at 1kHz).
    • Frequency Response: 50 Hz to 15,000 Hz (±3dB).
    • Signal-to-Noise Ratio: 60 dB.

  • Input Channels:

    • Line Input: 200mV/100kΩ.
    • Line Input: 1V/50kΩ.
    • 100V Input.

  • Power Supply:

    • AC: 220-240V, 50/60Hz.

  • Power Consumption:

    • AC: 2400VA.

Physical Specifications

  • Dimensions:

    • Width: 485 mm.
    • Height: 170 mm.
    • Depth: 580 mm.

  • Weight:

    • 46.0 kg.

Applications

The Ahuja SPA 15000 is ideal for:

  • Large-scale public address systems requiring high power.
  • Installations with numerous speakers spread across wide areas.
  • Professional sound reinforcement setups in auditoriums, stadiums, and large halls.
