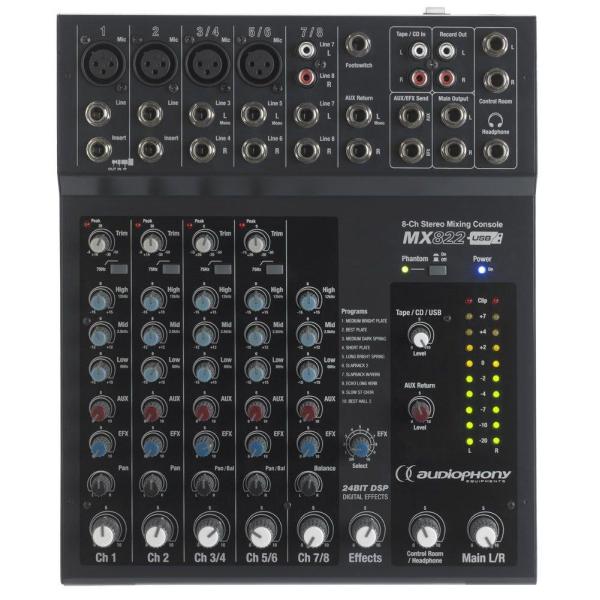

The Compact Mixer with Effects is a powerful and feature-rich audio console designed for small groups, live performances, and demo recording. Despite its compact size, it offers professional-grade features. Here's a detailed summary:
Key Features:
Built-in Effects:
- 24-bit Multi-Effects Processor:
- Delivers high-quality reverb, delay, and other effects.
- Ideal for enhancing live performances or recordings.
Connectivity:
- 2 Auxiliary Outputs:
- Includes an EFX send for routing signals to external processors or monitors.
- USB Full Duplex:
- Enables simultaneous recording and playback of lossless audio data via a computer.
- Compatible with Windows, Mac, and Linux systems.
Phantom Power:
- +48V Phantom Power:
- Powers condenser microphones for studio-quality sound.
Footswitch Compatibility:
- Dedicated footswitch jack:
- Allows remote control of the effects presence on selected channels, making it hands-free for performers.
Applications:
- Small Groups:
- Perfect for bands or ensembles needing a compact and reliable mixer.
- Live Performances:
- Multi-effects and auxiliary outputs enhance sound quality on stage.
- Demo Recording:
- Seamless USB integration for direct-to-computer recording.
- Content Creation:
- Ideal for podcasters and streamers who want onboard effects.
The Compact Mixer with Effects is a highly versatile and portable 5-channel mixer designed for professional audio applications such as small live performances, studio recording, and multimedia content creation.
features and specifications:
Channels:
- 5 Simultaneous Channels:
- 2 Mono Channels with inserts for external processing.
- 2-Way Stereo/Mono Channels (mic/line inputs).
- 1 Stereo Line Channel (jack and RCA inputs).
Audio Processing:
-
Multi-Purpose 24-bit Digital Effects Processor:
- Includes 10 presets for reverb, delay, and other effects.
- Effects can be controlled via a footswitch for live performance convenience.
-
2 Auxiliary Sends:
- One dedicated to EFX (effects).
- Allows external signal routing for monitoring or additional processing.
-
3-Band Equalizer on each channel:
- High: ±15dB @ 12kHz.
- Mid: ±12dB @ 2.5kHz.
- Low: ±15dB @ 80Hz.
-
Low-Pass Filter on mono channels for enhanced sound shaping.
Inputs and Outputs:
-
Input Connectors:
- Balanced XLR and TRS Jack (6.35mm) for mono inputs.
- Stereo inputs with XLR, TRS, or RCA options.
- AUX return on mono 6.35mm Jack.
- Tape/CD input via RCA.
-
Output Connectors:
- Master and Control Room via mono 6.35mm Jack.
- Record output via RCA.
- Headphone output, AUX Send, and DSP Send via 6.35mm stereo Jack.
- Footswitch jack (6.35mm mono) for DSP activation.
Performance Specifications:
-
Maximum Output Level: +22dBm.
-
Frequency Response: 20Hz - 20kHz (-1dB).
-
Total Harmonic Distortion (T.H.D.): <0.01%.
-
Crosstalk: >70dB.
-
Noise Levels:
- Equivalent Input Noise (EIN): >127dB.
- Residual Noise: >100dB.
- Master & AUX Outputs: >80dB.
-
DSP Effects: 24-bit processing, 10 selectable presets.
Digital Interface:
- USB Audio 1.1:
- Sample Rates: 44.1/48 kHz.
- Bit Depth: 16-bit.
- Enables recording and playback via PC, Mac, or Linux systems.
Power:
- External Power Supply:
- Primary: 230V - 50Hz - 25W.
- Secondary: AC 18V x 2, 400mA.
Physical Specifications:
- Dimensions: 247 x 290 x 65 mm (compact and portable).
- Net Weight: 2.8 kg (lightweight for easy transport).
Settings & Controls:
Applications:
- Small Performances: Suitable for small bands or solo performers.
- Studio Recording: USB interface and effects make it ideal for demos or small-scale production.
- Content Creation: Perfect for podcasts, streaming, or multimedia projects.
- Event Use: Lightweight and portable for quick setup at events or presentations.
