DJA 5000 Power Amplifier

₹64,540.00
DJA Series 5000 Power Amplifiers
Categories:
,
Brand:

Product Details

Studiomaster Professional sound quality and reliability, the DJA Series is the amplifier of choice for professionals who demand superior performance.

  • Rugged & Reliable: Built to endure the toughest environments, ensuring long-lasting, reliable operation.

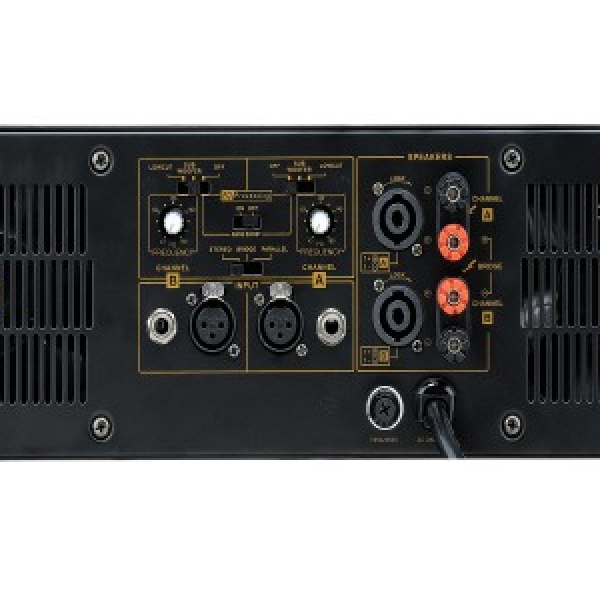

  • Input Connectivity: Features balanced XLR and 1/4” Jack inputs for versatile and professional signal handling.
  • EQ Processing: Rear panel options for Low Cut and Subwoofer selection, allowing for customized sound shaping.
  • Mode Selection: Stereo, Bridge, and Parallel modes can be easily selected via a rear panel switch.
  • Protection Features: Equipped with Temperature and DC Short Circuit protection for safe operation under demanding conditions.
  • Cooling System: Large cooling fans for efficient heat dissipation and maximum performance.

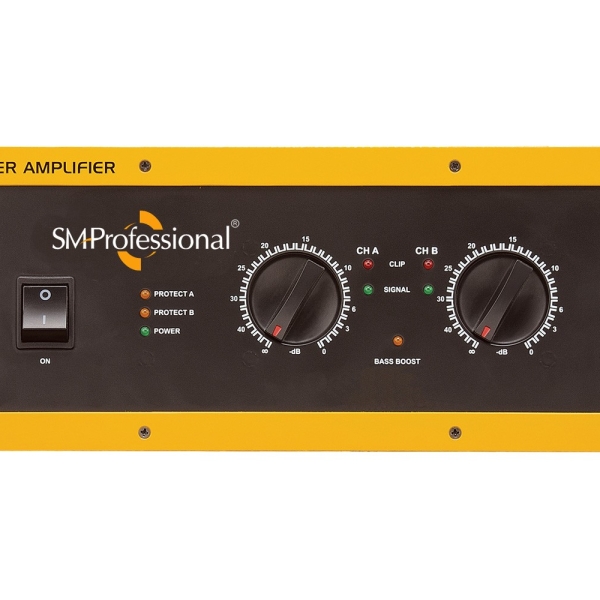

  • LED Indicators: Front panel LEDs show Power, Signal, Clip, Bass Boost, and Protect status, keeping you informed at a glance.
  • Voltage Compatibility: Operates on 220V AC-240V AC mains voltage as well as low voltage (150V AC) for flexible usage in varying environments.
  • Output Connectors: Versatile Speakon and Binding Post connectors for a range of speaker connections.
  • Rack Mountable: Standard 19” rack mountable design, perfect for installations or touring setups.

Here’s a structured and professional product specification format for your DJA Series Power Amplifier:

Power Output:

  • 4 Ω (True RMS), 20Hz–20kHz, 1% THD: 2 x 1900 W
  • 4 Ω (EIA), 1kHz, 1% THD: 2 x 2500 W
  • 8 Ω (True RMS), 20Hz–20kHz, 1% THD: 2 x 1200 W
  • 8 Ω (EIA), 1kHz, 1% THD: 2 x 1400 W
  • Bridged Mode (8 Ω):
    • True RMS, 20Hz–20kHz, 1% THD: 3800 W
    • EIA, 1kHz, 1% THD: 5000 W

Damping Factor:

350 : 1 (8 Ω)

Frequency Response:
20Hz – 20kHz (-3dB)

Protection Devices:
Temperature, DC, Short Circuit, Soft Start

Input Connectors (Per Channel):
XLR, 1/4” TRS Jack

Output Connectors (Per Channel):
Speakon / Binding Posts

Dimensions (W x D x H):
482 x 530 x 132 mm (3U)

Net Weight:
32 kg
