DJA 4000 Power Amplifier

₹54,230.00
The DJA Series power amplifiers
Categories:
,
Brand:

Product Details

It looks like you're outlining the key features of a professional stereo power amplifier. Here's a concise summary for your product description:

Rugged & Reliable Professional Stereo Power Amplifier

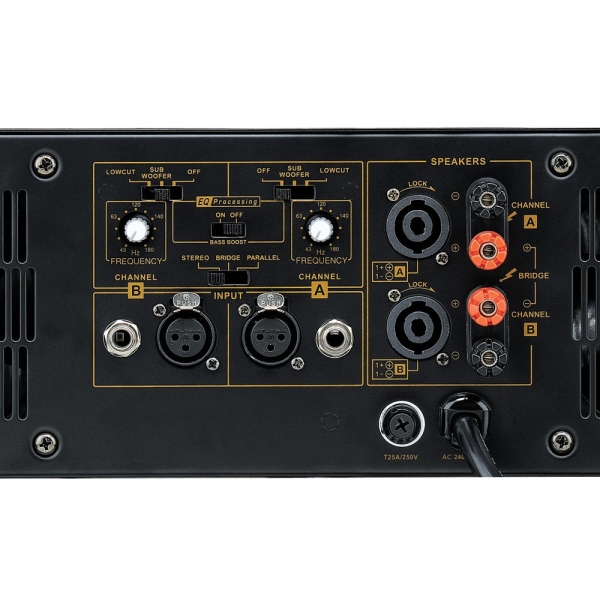

  • Inputs: Balanced XLR & 1/4” Jack for versatile connectivity.
  • EQ Processing: Rear panel options for Low Cut and Subwoofer selection.
  • Mode Selection: Choose between Stereo, Bridge, or Parallel mode.
  • Protection Features: Includes temperature and DC short circuit protection.
  • Cooling: Large cooling fans ensure optimal performance.
  • LED Indicators: Power, Signal, Clip, Bass Boost, and Protect status indicators on the front panel.
  • Mains Voltage: Compatible with 220V-240V AC, with low voltage operation (150V AC).
  • Outputs: Speakon & Binding Post connectors for flexible speaker connection.
  • Rack Mountable: 19” rack mountable design for easy installation.

Here's a concise and clear format for your power amplifier specifications:

Power Output:

  • 4 Ω (True RMS), 20Hz–20kHz, 1% THD: 2 x 1400 W
  • 4 Ω (EIA), 1kHz, 1% THD: 2 x 1950 W
  • 8 Ω (True RMS), 20Hz–20kHz, 1% THD: 2 x 900 W
  • 8 Ω (EIA), 1kHz, 1% THD: 2 x 1100 W
  • Bridged Mode (8 Ω):
    • True RMS, 20Hz–20kHz, 1% THD: 2800 W
    • EIA, 1kHz, 1% THD: 3900 W

Damping Factor:

350 : 1 (8 Ω)

Frequency Response:
20Hz – 20kHz (-3dB)

Protection Devices:
Temperature, DC, Short Circuit, Soft Start

Input Connectors (Per Channel):
XLR, 1/4” TRS Jack

Output Connectors (Per Channel):
Speakon / Binding Posts

Dimensions (W x D x H):
482 x 495 x 132 mm (3U)

Net Weight:
29.5 kg
