PA Mixer PMX 1632FX

₹21,125.00

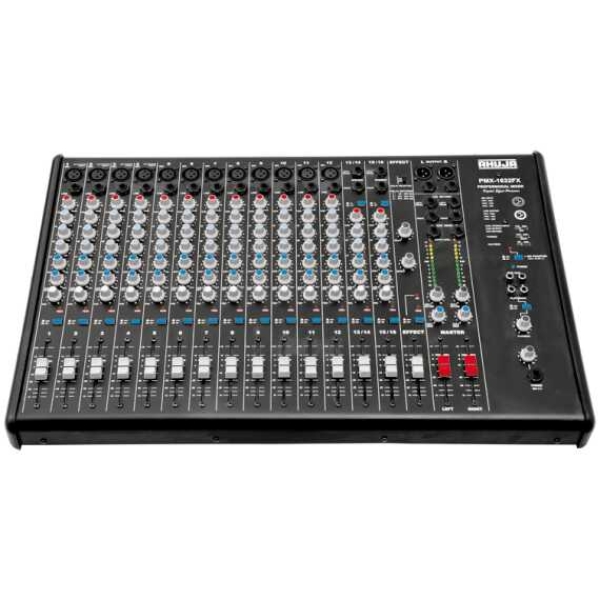

Ahuja PMX-1632FX Mixer
Categories:
Brand:

Product Details

The Ahuja PMX-1632FX Mixer is a versatile and high-performance analog audio mixer designed for professional sound reinforcement applications. Here's an overview of its features and specifications for easy understanding:

Key Features:

  1. Input Channels:

    • 12 MIC/LINE Balanced Mono Inputs (with enhanced headroom, 3-pin F/XLR connectors).
    • 2 STEREO Balanced Inputs (6.3mm stereo jack sockets, selectable sensitivity: -10dBu or +4dBu).

  2. Phantom Power:

    • 48V phantom supply available on 4 MIC inputs (MIC-1 to MIC-4) with a common ON/OFF switch.

  3. Control Features:

    • Each MIC/LINE channel has:
      • Gain Control.
      • 3-band active Equalizer (Bass, Mid, Treble).
      • AUX1 (Pre-Fader) and AUX2/EFX (Post-Fader) controls.
      • PAN control.
    • Stereo channels feature:
      • Gain Control.
      • 2-band active Equalizer.
      • AUX1 (Pre-Fader), AUX2/EFX (Post-Fader) controls.
      • Balance control.
    • Individual channel ON/OFF switches.
    • Peak LED for signal clipping indication.
    • High-precision 60mm slide faders.

  4. Digital Effects Processor:

    • Delay selector with controls for Delay, Repeat, and Level.
    • Delay range: 60-650ms (adjustable in 3 settings).

  5. Output & Monitoring:

    • Balanced Left & Right Line Outputs (via M/XLR connectors and stereo phone jack sockets).
    • LED VU Meters (12-segment array) for Left & Right output level monitoring.
    • AUX Send & AUX Return for monitoring/effects processing.
    • Headphone output with level control.

  6. Additional Features:

    • Stereo Tape Playback inputs (L&R RCA sockets) with ON/OFF switch and level control.
    • Stereo Record Output (L&R RCA sockets).

  7. Durability and Design:

    • Rugged, stable construction with user-friendly layout and stylish side panels.
    • AC operation: 240V, 50Hz.

Technical Specifications:

Parameter Details
MIC Input Impedance/Gain 2kΩ Balanced / 65dB
LINE Input Impedance/Gain 20kΩ Balanced / 45dB
STEREO Input Impedance/Gain 10kΩ Balanced / 14dB (-10dBu) / 0dB (+4dBu)
Frequency Response 25Hz – 20kHz (+0, -1dB)
THD <0.08%
Equalization ±12dB @ 100Hz, 2kHz, 10kHz
Line Output Nominal/Max Level 4dBu / 21dBu (1.22V / 9V)
Signal-to-Noise Ratio >70dB
Power Supply 220-240V, 50Hz
Dimensions (WxHxD) 609 × 110 × 435mm
Weight 9.7kg

Applications:

  • Ideal for live performances, studio recordings, houses of worship, and conference setups.
  • Suitable for use in PA systems and sound mixing applications requiring reliable and precise audio control.
